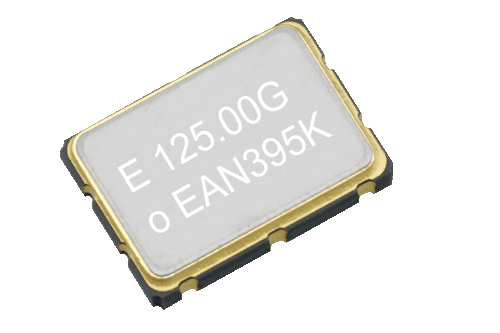

SG7050VAN EPSON/愛普生 SMD 7050 常規有源晶振

SG7050VAN 晶振是EPSON/愛普生的一款額定頻率73.5 MHz to 700 MHz的石英晶體振蕩器，4腳貼片，7050封裝常規有源晶振，具有小尺寸，高穩定性。該款有源晶體振蕩器，可以在B : -20 °C to +70 °C / G : -40 °C to +85 °C °C的溫度內穩定工作,它廣泛應用于汽車多媒體、車身電子、遙控、太空設備、防盜防災裝置、安放監控等 。作為EPSON/愛普生晶振官網推薦代理商，江蘇南山電子備有現貨并提供樣品零售。銷售價格請與江蘇南山電子官網在線客服咨詢。如需技術支持，請向南山電子技術部尋求選型支持。

產品型號	產品編碼	標稱頻率	頻率公差	購買
SG7050VAN 125.000000MHz KJGA	X1G004281000100	125MHz	±50 ppm
SG7050VAN 125.006250MHz KJGA	X1G004281000200	125.00625MHz	±50 ppm
SG7050VAN 100.000000MHz KJGA	X1G004281000400	100MHz	±50 ppm
SG7050VAN 200.000000MHz KJGA	X1G004281000500	200MHz	±50 ppm
SG7050VAN 400.000000MHz KJGA	X1G004281000600	400MHz	±50 ppm
SG7050VAN 106.250000MHz KJGA	X1G004281000700	106.25MHz	±50 ppm
SG7050VAN 212.500000MHz KJGA	X1G004281000800	212.5MHz	±50 ppm
SG7050VAN 74.250000MHz KJGA	X1G004281000900	74.25MHz	±50 ppm
SG7050VAN 148.500000MHz KJGA	X1G004281001000	148.5MHz	±50 ppm
SG7050VAN 75.000000MHz KJGA	X1G004281001100	75MHz	±50 ppm
SG7050VAN 150.000000MHz KJGA	X1G004281001200	150MHz	±50 ppm
SG7050VAN 156.250000MHz KJGA	X1G004281001400	156.25MHz	±50 ppm
SG7050VAN 312.500000MHz KJGA	X1G004281001500	312.5MHz	±50 ppm
SG7050VAN 312.515625MHz KJGA	X1G004281001600	312.515625MHz	±50 ppm
SG7050VAN 161.132800MHz KJGA	X1G004281001700	161.1328MHz	±50 ppm
SG7050VAN 125.000000MHz KEGA	X1G004281002000	125MHz	±30 ppm
SG7050VAN 125.006250MHz KEGA	X1G004281002100	125.00625MHz	±30 ppm
SG7050VAN 100.000000MHz KEGA	X1G004281002300	100MHz	±30 ppm
SG7050VAN 200.000000MHz KEGA	X1G004281002400	200MHz	±30 ppm
SG7050VAN 400.000000MHz KEGA	X1G004281002500	400MHz	±30 ppm
SG7050VAN 106.250000MHz KEGA	X1G004281002600	106.25MHz	±30 ppm
SG7050VAN 212.500000MHz KEGA	X1G004281002700	212.5MHz	±30 ppm
SG7050VAN 74.250000MHz KEGA	X1G004281002800	74.25MHz	±30 ppm
SG7050VAN 148.500000MHz KEGA	X1G004281002900	148.5MHz	±30 ppm
SG7050VAN 75.000000MHz KEGA	X1G004281003000	75MHz	±30 ppm
SG7050VAN 150.000000MHz KEGA	X1G004281003100	150MHz	±30 ppm
SG7050VAN 155.520000MHz KEGA	X1G004281003200	155.52MHz	±30 ppm
SG7050VAN 156.250000MHz KEGA	X1G004281003300	156.25MHz	±30 ppm
SG7050VAN 312.500000MHz KEGA	X1G004281003400	312.5MHz	±30 ppm
SG7050VAN 312.515625MHz KEGA	X1G004281003500	312.515625MHz	±30 ppm
